PZ450
parameters1:1/3 CMOS High-definition image chip
parameters2:Total Pixels:720*480 pixels
parameters3:Lens Angle: 170

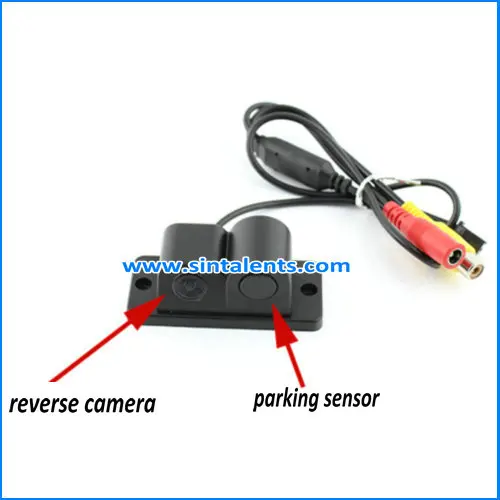

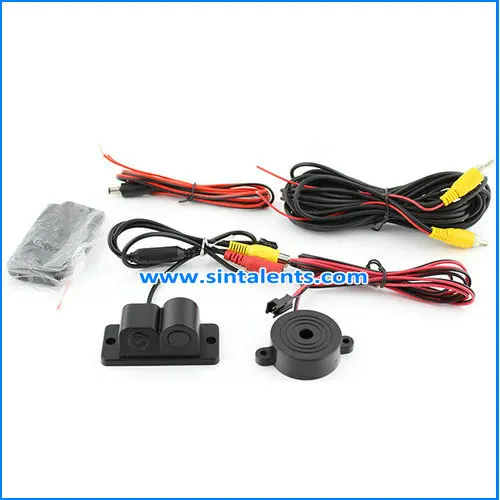

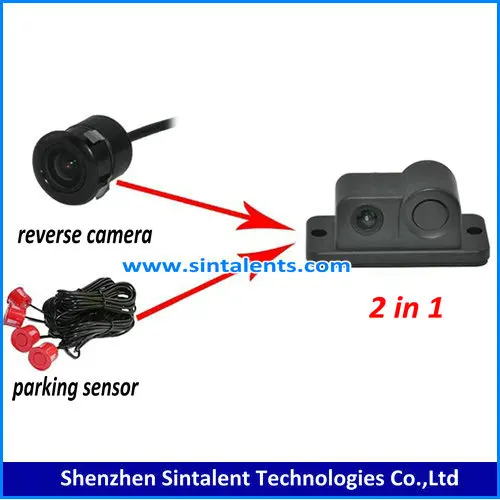

Universal parking sensor truck reverse camera

Features:

1, 1/3 CMOS High-definition image chip

2, DC12V

3, Total Pixels:720*480 pixels

4,Lens Angle: 170

5,Mini Lumination: 1.0 Lux

5,Waterproof : IP67

7,Detect distance : 0--2.0 M

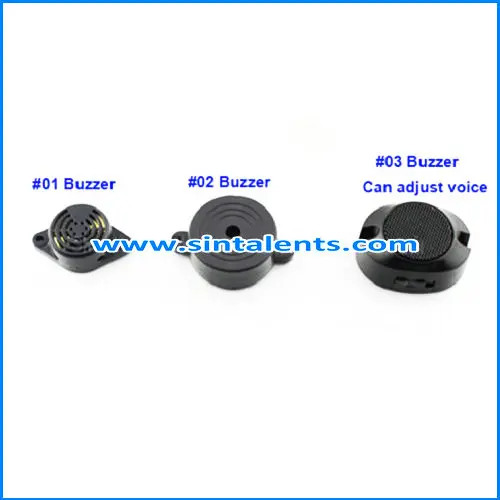

8,Alarm by Four-step bibi sound Volume: 65DB

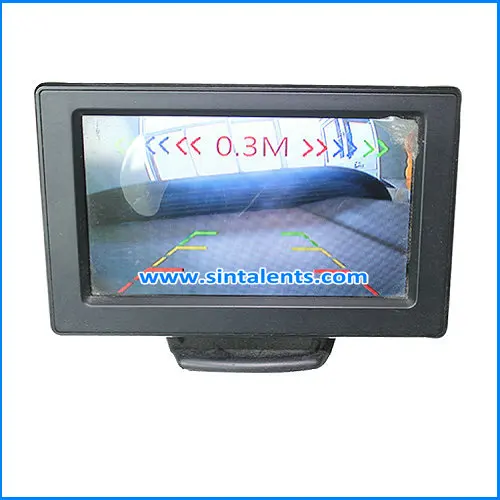

9,Display the distance and image of obstacles on the screen

10,PZ450with one sensor,PZ451with two sensor



Parameter:

Voltage: 9DCV—15DCV

Rated voltage: 12DCV

Power cost: Max 1W

Image sensor: 1/3 CMOS

Total Pixels: 720*480 pixels

Resolution: 600 TVL (Enhanced)

Lens Angle: 170 degree

Mini lamination: 0.1Lux

Video output: CVBS  1.0 Vpp / 75ohm

Respond distance: 0.3m—2.0m

Alarm distance: 0m—2.0m

Sensor diameter: 14mm

Sensor angle: X,Y,60℃

work temperature: -30℃---+80℃

alarm volume: 65dB

Alarm frequency

1.6-2.0m:0.5 HZ(slowness);;1.1-1.5m :1 HZ(slowness);

0.6-1.0m:3 HZ(commonly); 0-0.4m :BI----- ;
