PZ607-W
parameters1:7" digital color TFT LCD screen
parameters2:Automatic modulation recognition system PAL / NTSC
parameters3:Aluminum alloy material shell, plug-in design

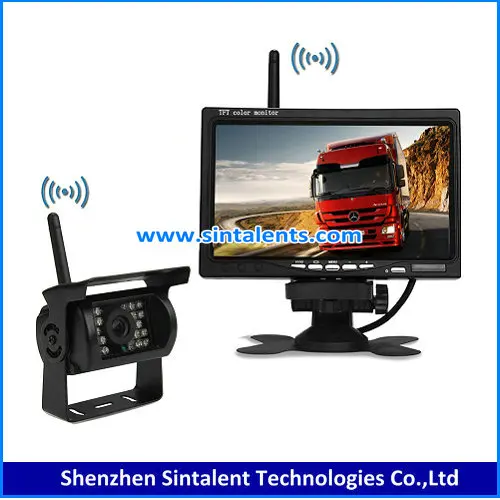

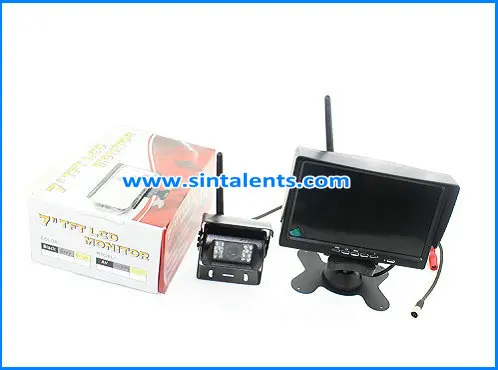

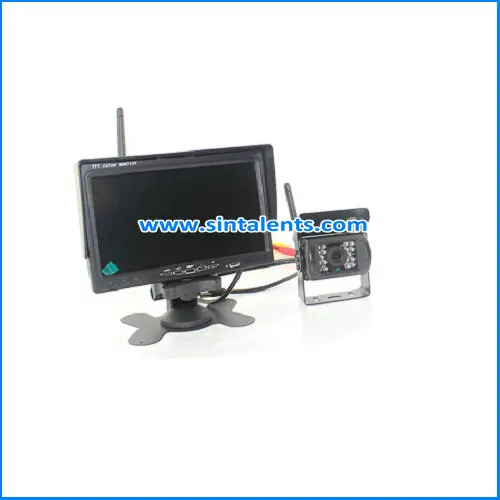

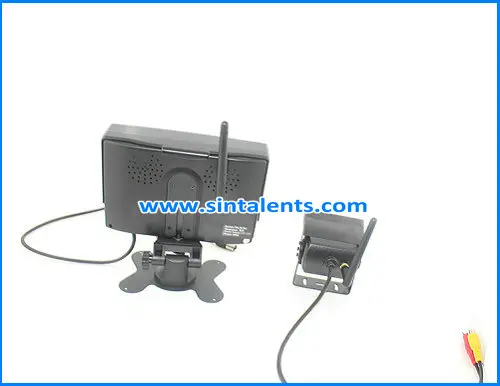

24V Truck Backup Parking Sensor Rearview Camera System

Features:

- 7" digital color TFT LCD screen

- From the perspective of range - 50 degrees, the next 70 degrees, 70 degrees left -, right - 70 degrees

- Automatic modulation recognition system PAL / NTSC

- OSD control the brightness, contrast, color, volume, mode, flip, languages(English, German, French, Spanish, Portuguese, Italy, Holland, simplified Chinese)

- Built-in 2.4GHz wireless transmitter and receiver with an effective distance of 100 meters

- 2 way video input

- Aluminum alloy material shell, plug-in design

- 18 IR LEDs camera supports night vision



Monitor:

Function of keys:

- "V1/V2": AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture

- "MENU": Press the key can circularly open menu

- "-": Select the down regulating parameters in the menu

- "+": Select the up regulating parameters in the menu

- "POWER": On / Off

Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the +12 / 24(GND), green wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)

Screen Size: 7 inches

Display Component: Color TFT LCD

LED Backlight Brightness: 300 cd/m2

Screen Ratio: 16:9

Pixel: 800 x 480

System: PAL / NTSC system(auto switch)

Contrast Ratio: 1000:1

Power Requirement: DC 12V / 24V

Power: <=5W

Current:<=450mA

Seismic Level: 4G

Reception: <=100 meters in the open air

Video: 2 way video input

Rear View: V2 auto reverse when trigger activated

Operate Mode: Key operation and remote control

Working Temperature: -10C~+60C

Storage Temperature: -20C~+70C

Dimension: 172mm x 113mm x 23mm

Net Weight: 287g
